Professional Garage Door Installation Channelview TX

Service Overview

A successful garage door installation depends on much more than attaching panels to an opening.

Door weight, opening dimensions, spring design, track geometry, available clearance, rollers, lift cables, opener compatibility, and supporting hardware must work together.

Garage Door Installation Channelview TX focuses on creating a complete system that is correctly fitted and mechanically balanced.

Accurate Opening Measurements

Width and height define the basic opening, but several other measurements affect the installation.

Headroom influences spring and track configuration. Sideroom determines how vertical tracks and brackets can be positioned. Backroom affects horizontal tracks and opener rails.

Garage Door Installation Channelview TX evaluates these clearances before components are selected and installed.

Floor condition can also influence bottom-seal contact and final closure.

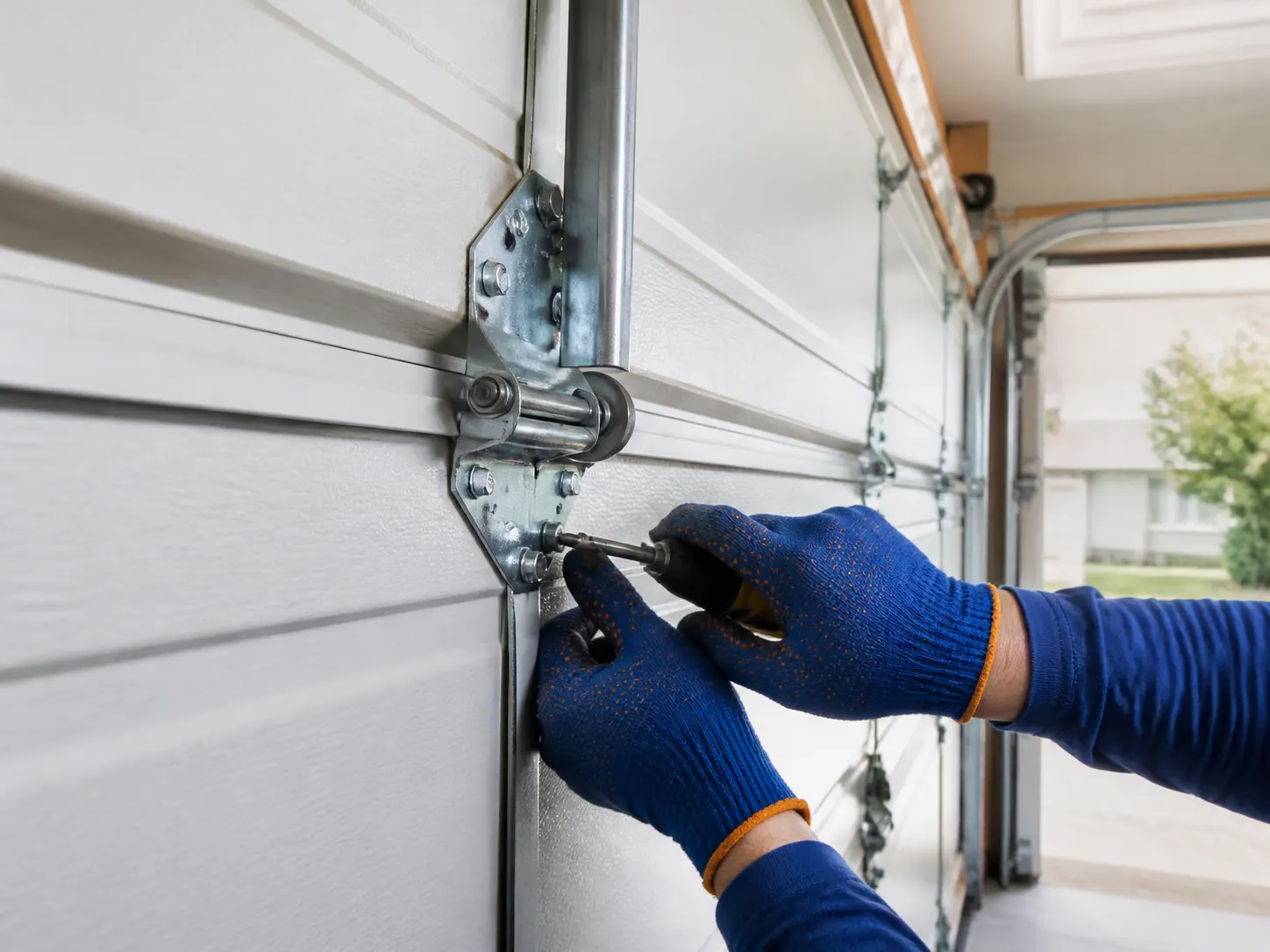

Panels, Hinges, and Rollers

Sectional garage doors use multiple horizontal panels connected by hinges.

As the door moves upward, these hinges allow the sections to pivot through curved tracks.

Rollers inserted into hinge fixtures guide the panels during travel.

Correct hinge placement and roller fit are essential because poorly positioned hardware can create binding or irregular movement.

Panels should also remain aligned so the door closes evenly across the opening.

Springs and Cable Systems

Counterbalance springs must be matched to the completed door weight.

The spring system supplies lifting torque while steel cables transfer force through the drums to the lower sections.

Garage Door Installation Channelview TX should achieve correct balance before the automatic opener becomes responsible for normal movement.

The opener is not intended to compensate for incorrectly sized springs or a binding new door.

Track Alignment

Vertical, curved, and horizontal tracks create the complete travel path.

Tracks need correct spacing, secure mounting, and suitable geometry for the rollers.

Even a new garage door can become noisy or difficult to operate when track alignment is poor.

The finished system should travel smoothly without excessive side pressure.

Opener Compatibility and Testing

After the door operates correctly mechanically, a compatible opener can be connected.

Travel settings, trolley position, force behavior, wall controls, remotes, and photo-eye sensors should then be tested.

Safety sensors should remain correctly aligned and unobstructed.

Residential and Commercial Installation

Commercial overhead doors can require larger openings, stronger tracks, higher-cycle springs, heavier hardware, and operators designed around frequent daily use.

Residential installations may focus more heavily on curb appeal, insulation, and everyday household operation.

Contact Garage Door Installation Channelview TX when building a new opening or replacing an existing door system.
